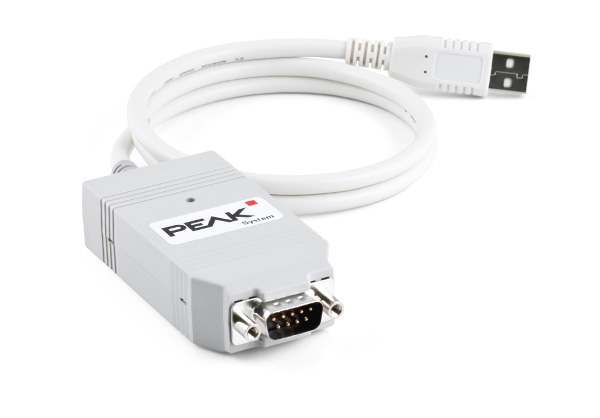

Product Features

• Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
• High-speed CAN connection (ISO 11898-2)
• Bit rates from 5 kbit/s up to 1 Mbit/s
• Time stamp resolution approx. 42 µs
• Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
• NXP SJA1000 CAN controller, 16 MHz clock frequency
• NXP PCA82C251 CAN transceiver
• Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
• CAN termination can be activated through a solder jumper
• 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
• Voltage supply via USB
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Pin assignment D-Sub
